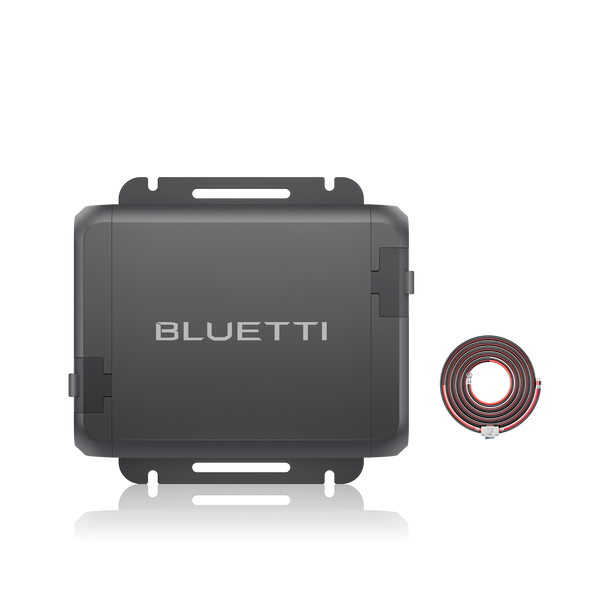

I installed the BLUETTI Charger 1 in our 2017 ProMaster in November 2025 and ran it daily until the Charger 2 took over its slot a few months later. The Charger 1 now lives in storage as our backup. After seven years of leaning on solar and wall outlets alone, the Charger 1 was the unit that showed me what alternator charging actually does for a portable-power setup, and confirmed why solar by itself was never quite enough for full-time travel in mixed climates.
If your power station only charges from solar and AC, you have two failure modes: overcast weeks (solar dies) and cold weather (NMC stations refuse charge below freezing). Alternator charging gives you a third recovery path that doesn’t depend on the sky or a campsite outlet.
Quick Verdict
Skip if: you stay parked for long periods or already run a fully integrated DC-DC charger in a hardwired electrical system.
Is alternator charging worth it for your setup?#
Tap the situation that sounds like you.
🚐 Driving regularly, portable station setup, full-timer. This is the use case
If you drive 1–3 hours every few days as part of normal van life movement (between camp spots, to town, between climates), alternator charging captures power you're producing anyway. Combined with solar and occasional shore power, this is the third leg of a stable recovery system. It's how we've run ours since the day it went in.
🌧️ Overcast climates kill my solar regularly. Strong fit
Pacific Northwest winters, northeast travel, multi-day overcast stretches in the Gulf: solar collapses to single-digit production. Alternator charging is the path that doesn't care about the sky. A couple hours of highway driving refills the station regardless of weather. This is the climate where alternator charging becomes essential, not optional.
🛑 Stationary most of the time, rarely driving. Skip, solar first
If your van moves twice a month, alternator charging captures very little useful power. Spend that money on the largest solar array your roof holds and a reduced-load setup instead. Alternator charging earns its place on miles you're already driving, not as a reason to drive more.
🔧 Already have a hardwired DC-DC charger setup. You're covered
Integrated DC-DC chargers in fixed electrical builds already do this job. The Charger 1 is for portable-station setups that need alternator charging without committing to a hardwired house bank install. If you went the other route already, you don't need this.
What running a Charger 1 actually taught me#
Alternator charging changes the recovery math +
Before the Charger 1, our recovery options were solar and shore power. Solar dies on cloudy days. Shore power requires being at a campground or coffee shop. That meant overcast weeks turned into rationing weeks, exactly the situation that built CAVL's recovery-first framing.
Alternator charging is a third path that's tied to nothing but how often you drive. A 2-hour highway drive becomes a meaningful charge cycle. Suddenly the question stops being "where can I plug in" and starts being "do I have a reason to move tomorrow." That's a different relationship with power management.
It's not a substitute for solar, it's a complement +
One mistake I see new van lifers make: treating alternator charging as a replacement for solar. It isn't. Solar produces every sunny day for free without you doing anything. Alternator charging produces only when you're driving, and you don't always want to drive.
The real setup is both. Solar handles the baseline on sunny camp days. Alternator charging handles overcast weeks and recovery from heavy use. Shore power handles the occasional deep refill. Three recovery paths, not one.
The install reality +
Compared to a full DC-DC charger install in a hardwired system, the Charger 1 install is straightforward. Compared to plugging in a wall charger, it's not. You're working with vehicle 12V wiring, fuse planning, and routing cables from engine bay to wherever your power station lives. Size that wiring for 50A, which is what the Charger 1 pulls off a 12V system at full output. Spec
If you've done basic 12V work, this is approachable. If you haven't, this is the project where you should slow down, watch a few install videos, and consider whether you'd rather pay an installer for the wiring portion. Bad alternator-charging wiring isn't just a performance problem. It's a fire risk.
Why I added the Charger 2 +
The Charger 1 was the foundation, and it worked. Its one real limit is a plumbing problem: it feeds the power station's DC/PV input, which is the same port your solar panels want. So it isn't that the Charger 1 chooses between alternator and solar internally. It's that you go outside and swap the cable every time you stop driving and start parking. Every time.
The Charger 2 fixed that by taking both inputs itself: up to 800W from the alternator and 600W from solar at once, capped at 1,200W combined, against the Charger 1's 560W from one source. Spec A few months in, the Charger 2 took the install slot. The Charger 1 is now the backup on the shelf, same retirement plan as the Yeti.
If the Charger 2 isn't in your budget and you can find a Charger 1 used or on sale, the Charger 1 still does the core job correctly. Don't feel pressured to chase the latest. The alternator-charging function is the same fundamental win either way.
Specs (for reference)#
The whole case for this box is one number: 560W. Spec A stock 12V cigarette socket gives you somewhere near 100W. That is the gap alternator charging closes, on miles you were driving anyway.
| Spec | BLUETTI Charger 1 |
|---|---|
| Max output | 560W (10A at a 27V default) |
| Vehicle input | 12–14V, or 22.5–28V on a 24V system |
| Draw from the alternator | up to 50A at 12V, 25A at 24V |
| Output voltage | 15.0–56.0V on a 12V system, adjustable in the app |
| Size | 5.7″ × 4.33″ × 2.36″ (145 × 110 × 60 mm) |
| Weight | 2.65 lbs |
| Noise | 50 dB max |
| Working temperature | -4°F to 140°F |
| Ingress rating | IP20, so it mounts inside, not in the weather |
| Warranty | 2 years |
| Price | $249 direct from BLUETTI, checked August 2026 |
The 50A is the number to check before you buy, not the 560W. Spec That is what this thing pulls off your 12V system at full tilt, and it sets your wire gauge and your fuse. A charger rated in watts at the output end still has to be fed in amps at the input end, and 50A is real current through whatever cable you run from the engine bay. This is the part of the install worth slowing down on.
BLUETTI publishes charge times for its own stations: 4.1 hours for an AC200L, 2.5 hours for an AC180, 1.8 hours for an AC70, and a round “1kWh in 2 hours of driving.” Spec Those are the manufacturer’s figures, not stopwatch numbers from our van.
Captures vehicle alternator output and feeds it to the power station while driving. Solves the "no sun, no shore power" recovery gap. It has no solar input of its own: solar is the Charger 2's addition.
BLUETTI claims every one of its own stations plus most other brands. It plugs into the station's DC input, which on our Elite 200 V2 is the port rated 12V–60V / 20A / 1000W. Check your station's DC input rating: that ceiling, not the 560W, is what limits some setups.
Not plug-and-play: route wiring from the engine bay to the station with fusing sized for a 50A draw. Approachable if you've done basic 12V work; pay an installer if you haven't. IP20 means it lives inside the cabin, not under the hood.
Frequently asked#
How fast does it actually charge while driving? +
BLUETTI's own figure is 1kWh per 2 hours of driving, which is 560W minus the usual losses. Spec Against our Elite 200 V2 at 2,073.6Wh, a two-hour drive is therefore worth roughly half the pack. Estimate I never put a stopwatch on it, so that is arithmetic on their number rather than a reading off ours.
What moves it in practice: your station's DC input ceiling, how loaded the van's electrical system already is, and whether the alternator has headroom at idle versus highway speed. It is not as fast as a wall charger in Turbo mode. It produces during travel time you're spending anyway, which is the entire point.
Will this hurt my vehicle alternator or battery? +
Properly installed with correct fusing and isolation, no. Modern alternator chargers are designed to draw only when the vehicle is running and the system has spare capacity. The risk comes from improper installs that bypass safety features or lack proper isolation. Follow the install guide, use proper fusing, and verify behavior with a multimeter on the first drive.
Should I get the Charger 2 instead? +
If budget allows, yes. The Charger 2 takes alternator and solar at the same time and moves up to 1,200W combined, where the Charger 1 tops out at 560W and occupies the station's DC/PV port, so solar means swapping the cable. Spec If you find a Charger 1 cheaper used or on sale and you don't mind the cable swap, it still does the alternator-charging job correctly. The core function is the same.
Is alternator charging really worth the install effort? +
For full-time van lifers in mixed climates: yes. The first multi-day overcast week where you'd otherwise be rationing pays it back instantly. For weekend or fair-weather travel, probably not, because solar alone covers your load profile. The decision is climate and travel-pattern dependent, not income dependent.
The third recovery path
